25mm – 9mm X 1m Tapered Carbon Boom

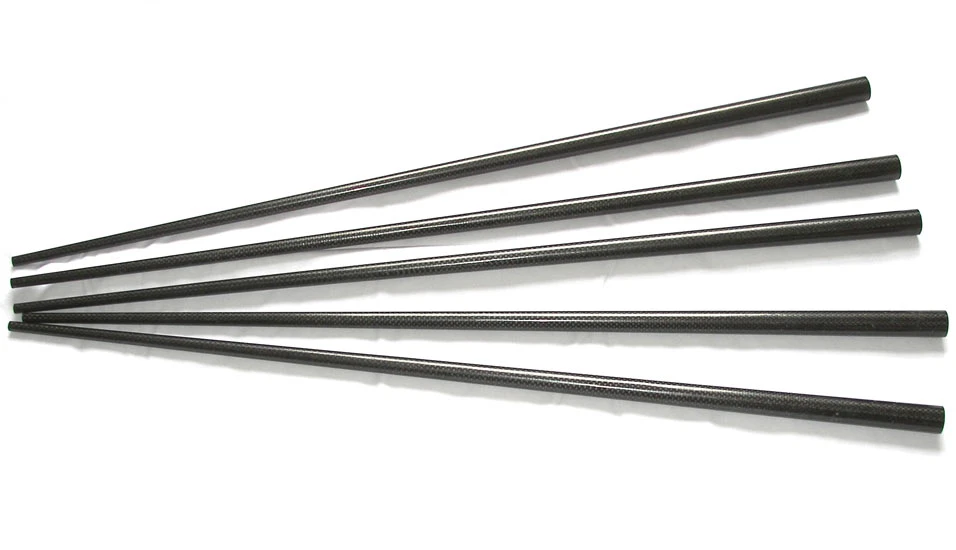

This 100 cm long lightweight carbon fiber boom tapers from 25.5 mm diameter to 8.5 mm diameter, with a wall thickness of 0.3 mm. It is made from high modulus carbon fiber wound onto a tapered form, encased in an epoxy matrix, and cured at high temperature. This high quality carbon boom (hollow tapered tube) is extremely rigid and strong, yet only weighs 26.0 g.

If cut down to less than the 90 cm limit for a legal UK Royal Mail postal tube this item will be sent by first class post, or Airmail post for overseas orders. If left full length it will be sent by courier, increasing the delivery cost.

Select the required length using the radio buttons below the price.

25.5 mm tapering to 8.5 mm Carbon Fiber Boom Specification
Wide end outside diameter	25.5 mm
Narrow end outside diameter	8.5 mm
Wall thickness	0.3 mm
Weight	26.0 g
Length	100 cm
Uses	Tailbooms
Structural material	HM carbon fibers
Matrix	Epoxy resin
Carbon content	Approx. 58%
Packing type	Rigid-usually sent in a postal tube

This beautiful boom fits the AVA Pro and the AVA Classic pod, and is a lighter and longer replacement of the Vladimir’s Models original. Suitable for use with AVA V mounts. Can also be used with the Kristoffair M2A-e Electric glider fuselage pod.
