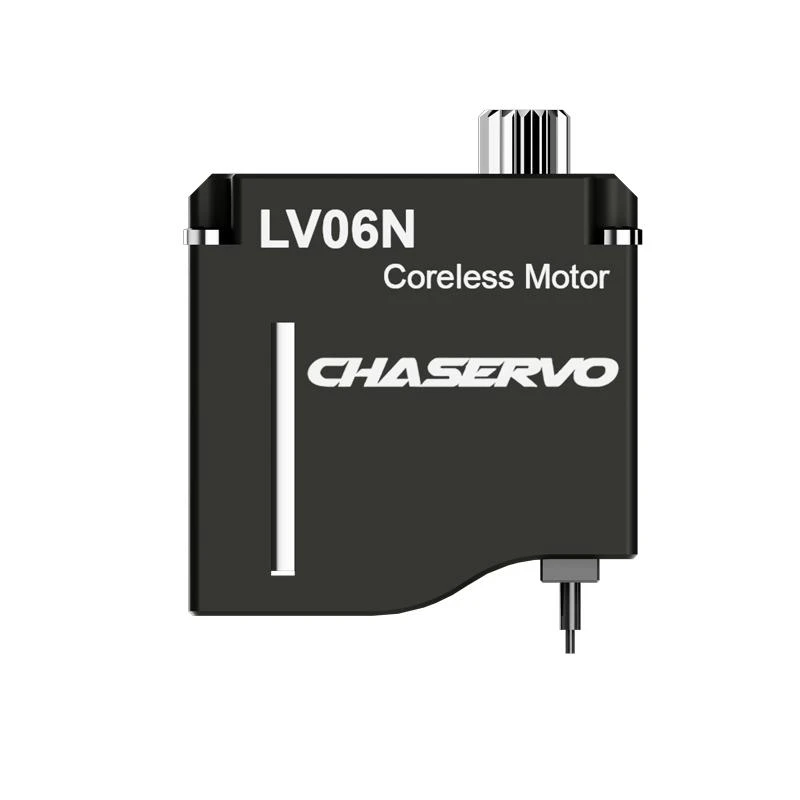

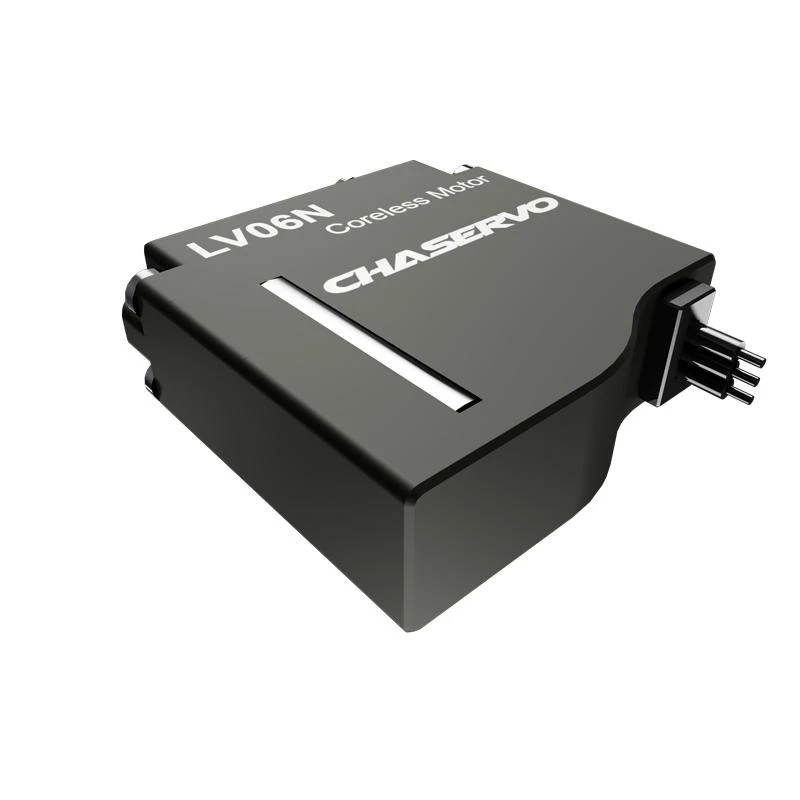

This -N suffix is a version of the HV06 servo without lugs (also called mounting tabs) and is for low voltage setups.
The LV06, LV06H, LV06N is the low voltage series and the HV06, HV06H, HV06N is the high voltage series.
| CHA LV06N Servo Specifications | ||
|---|---|---|

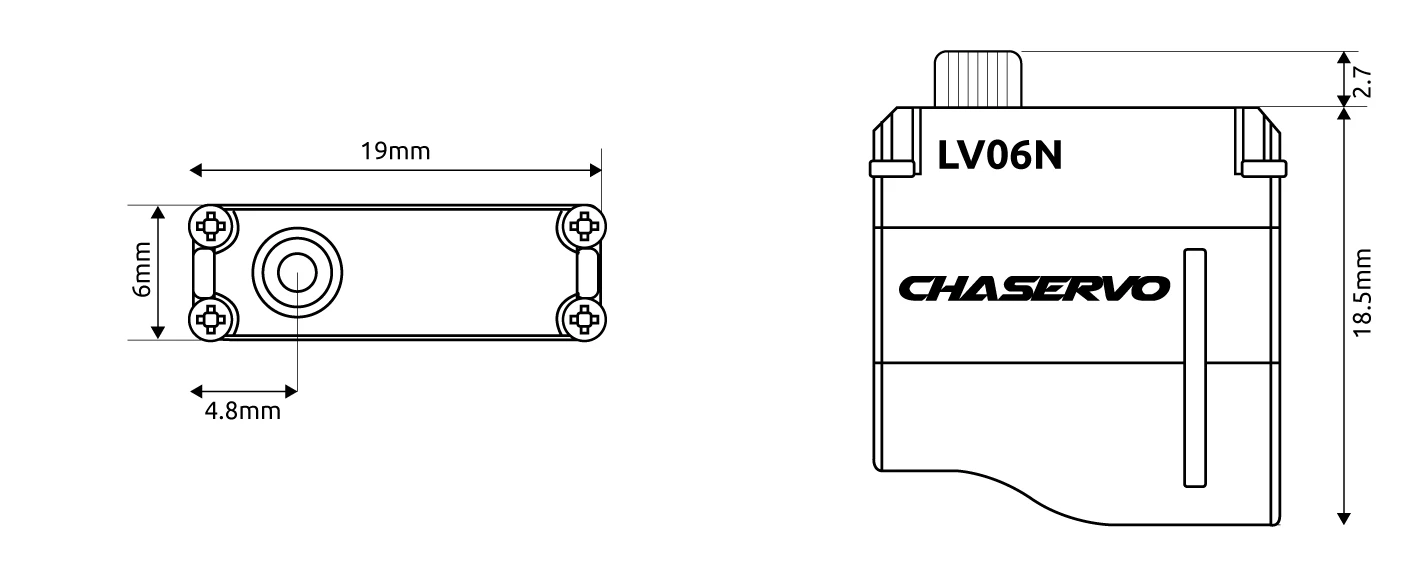

| Body dimensions | 19.6 mm wide x 6.0 mm thick x 18.5 mm high | 0.77″ wide x 0.24″ thick x 0.73″ high |
| Max dimensions | 19.6 mm wide x 6.0 mm thick x 21.5 mm high | 0.77″ wide x 0.24″ thick x 0.85″ high |
| Stall torque (3.3V) | 0.9 Kg.cm | 12 oz.in |
| Stall torque (4.2V) | 1.3 Kg.cm | 18 oz.in |
| Stall torque (5V) | 1.7 Kg.cm | 24 oz.in |
| Weight | 5.8 g | 0.20 oz |
| Lead length | 14 cm | 5.5 in |
| Operating speed (3.3V) | 0.077 sec/60° | |
| Operating speed (4.2V) | 0.066 sec/60° | |
| Operating speed (5V) | 0.055 sec/60° | |
| Operating voltage | 3.3V to 5V | |
| Operating temperature | -10 to +65 °C | |
| Bearings | 2 ball bearings | |
| Gear material | Hardened Steel | |
| Case material | Aluminum Alloy | |
| Motor type | 6mm Coreless | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 1 µs | |
| Pulse width for ± 60º | 900-2100 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |
| Supplied accessories | 2 double sided output arms, 2 single sided output arms, 2 arm retaining screws, 4mounting screws | |
| Optional accessories | ||
