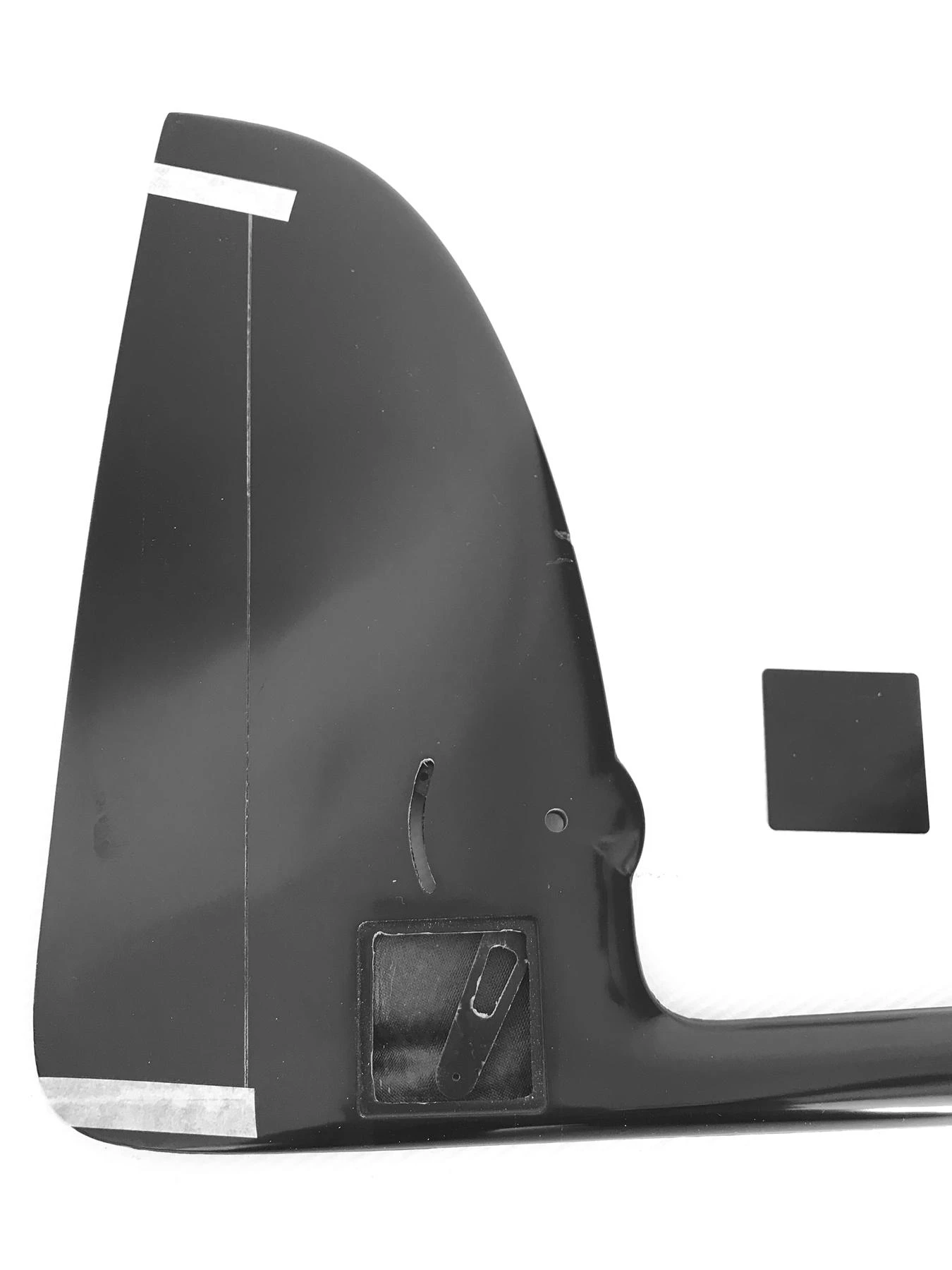

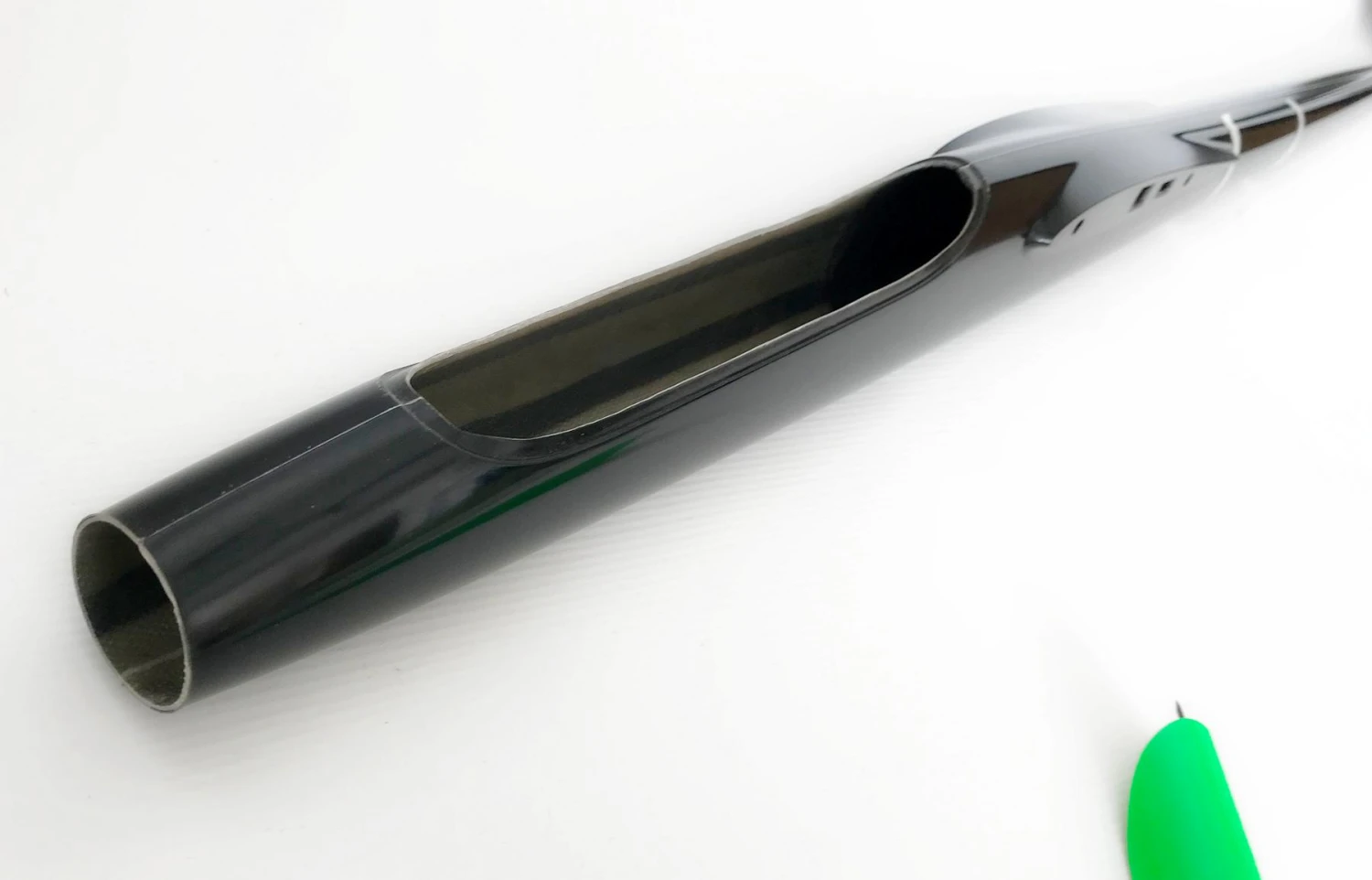

The fuselage has a good sized canopy hatch. No firewall has been fitted but a thick 36 mm firewall is included in the complete accessory pack. The fin incorporates a nicely engineered bell crank to actuate the all-flying tail, and an access hatch for connecting the linkage.

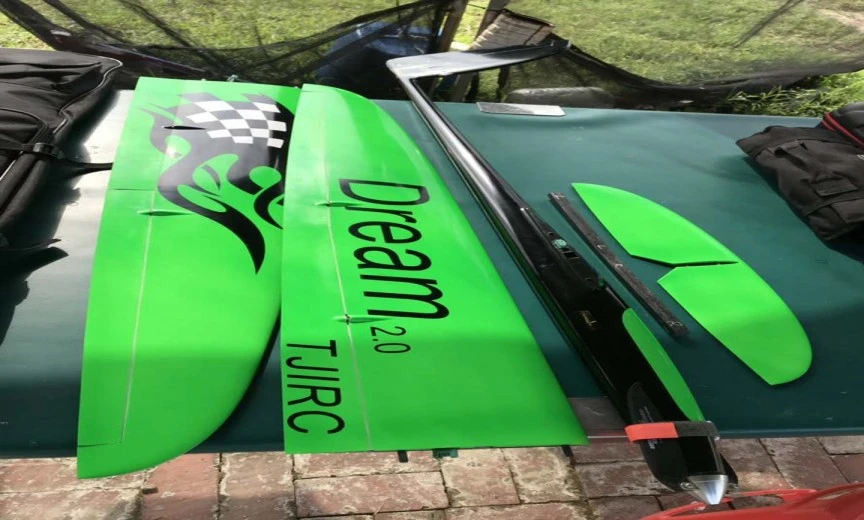

The two part wing is nicely finished and of hollow molded construction. The through-fuselage wing joiner is very substantial and imparts just one degree of dihedral per panel, ensuring good aerobatic performance and an attractive look in the air. The wing has generous sized access hatches for the flap and aileron servos which can be up to 10 mm thick.

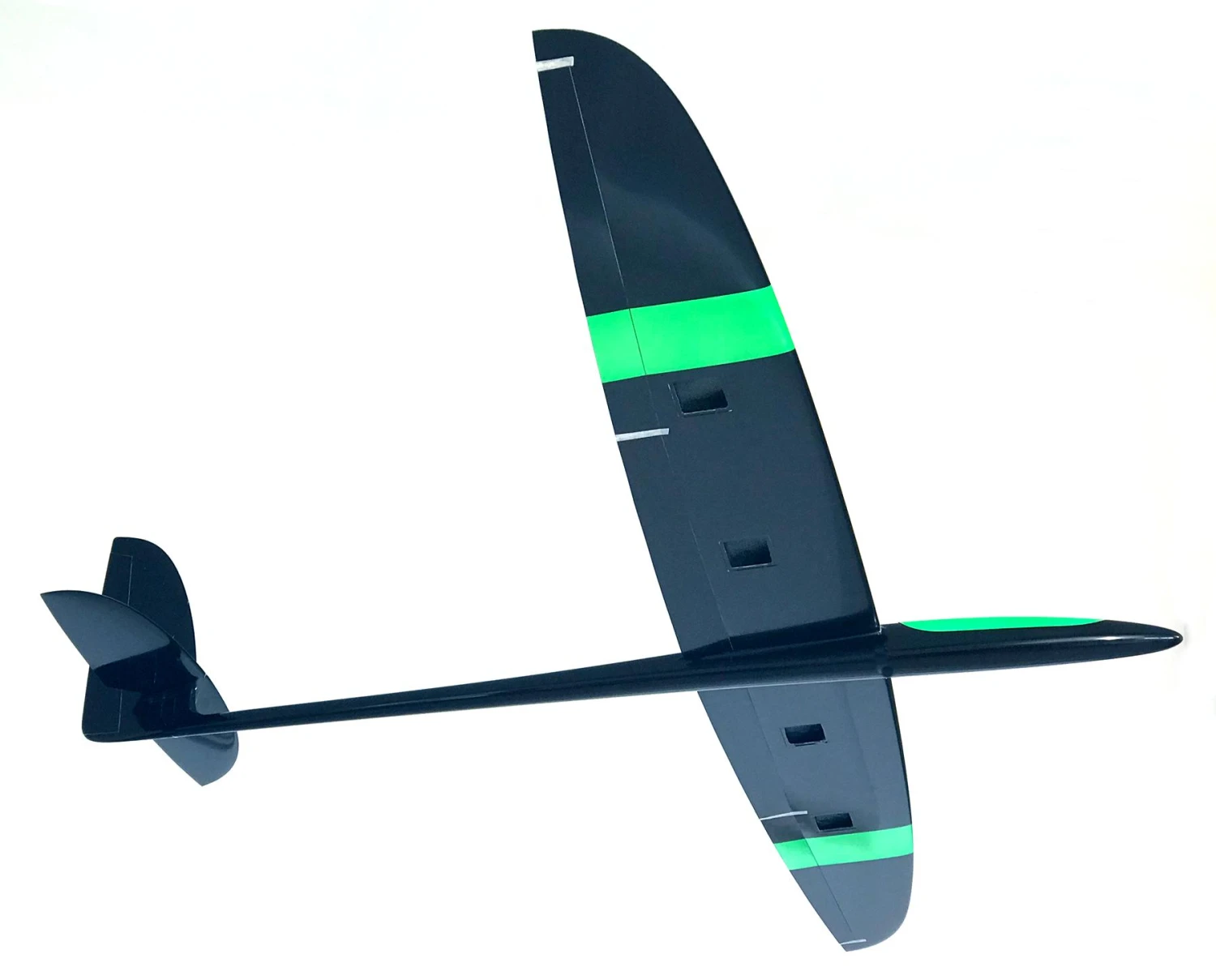

The photos mostly show the glider version, but we stock both glider and electric Dream 2.0 models, and electric Dream 2 versions do have the nosecone removed, and a firewall supplied.
The supplied accessories include all control horns, four plywood wing servo frames (for KST X10 or similar sized servos), and clevises and control rods for the flap and aileron connections. No build manual is available but assembly is straight-forward. Note that although the furface finish is generally good the fit and finish of the model is not up to that of a top price European model. Small bumps and fit problems are normal at this price-point.
| Dream 2 Hotliner Specifications | ||
|---|---|---|
| Wing span | 2.0 m | 79 in |
| Wing area | 32.2 dm2 | 499 sq in |
| Length inc spinner | 119 cm | 46.8 in |
| Flying weight from | 1655 g | 58.4 oz |
| Wing loading | 51.4 g/dm | 16.8 oz/sq ft |
| Aspect ratio | 12.4 | |
| Wing airfoil | Proprietary | |
| EDA (dihedral) | 1.0º | |
| Spinner Diameter | 36 mm | |
| Centre of Gravity | 65-80 mm from wing leading edge | |
| Controls | Rudder, elevator, ailerons, flap, throttle | |
| Dream 2 Hotliner Typical Weights | ||
|---|---|---|
| Fuselage | 300 g | 10.6 oz |
| Wings | 674 g | 23.8 oz |
| Tail Plane | 53 g | 1.9 oz |
| Wing joiner | 77 g | 2.7 oz |
| Accessories | 35 g | 1.2 oz |
| Total structure | 1139 g | 40.2 oz |
| Wiring | 24 g | 0.8 oz |
| Pushrods | 12 g | 0.4 oz |
| Receiver | 8 g | 0.3 oz |
| Rudder servo | 10 g | 0.4 oz |
| Elevator servo | 10 g | 0.4 oz |
| Wing servos (4) | 50 g | 1.8 oz |
| Speed control | 50 g | 1.8 oz |
| Motor | 150 g | 5.3 oz |
| Prop & spinner | 22 g | 0.8 oz |
| Battery | 180 g | 6.3 oz |
| Flying weight | 1655 g | 58.4 oz |
| Recommended Servos | |
|---|---|
| Rudder & Elevator | KST X10-710, KST DS145, KST X12-508, KST MS320, MKS HV6130H |
| Flap | KST X10, KST DS125, MKS HBL6625, MKS HV6130 |
| Aileron | KST X10 Mini, KST X10, KST DS135, KST DS125, MKS HBL6625 Mini, MKS HV6130 |
| Dream 2.0 Powertrain Recommendations | |
|---|---|
| XPower F3426/7 Storm | 2Ah 3S LiPo, 13×8,12×9 |
| XPower F3426/7 Storm | 2Ah 4S LiPo, 11×8,10×8 |
| Axi 2820/10 V2 Long | 2Ah 3S LiPo, 10×8, 11×7 |
| Axi 2820/14 V2 Long | 2Ah 4S LiPo, 10×8, 11×7 |
| Axi 2826/8 V2 Long | 2Ah 3S LiPo, 10×8, 13×8 |
| Axi 2826/8 V2 Long | 2Ah 4S LiPo, 10×8, 11×7 |
| Leomotion L3025-4550 | 2Ah 4S LiPo, 14×9, 15×8 |
| Powerline Micro 1520/10 | 1.2Ah 4S LiPo, 15×10, 16×8 |
| Recommended Control Throws | |
|---|---|
| Rudder | 20 mm each way |
| Elevator | 12 mm up / 12 mm down |
| Ailerons | 14 mm up / 10 mm down |
| Flap | 45 mm down |
| Crow brake mix | 10 mm up aileron with full down flap |
