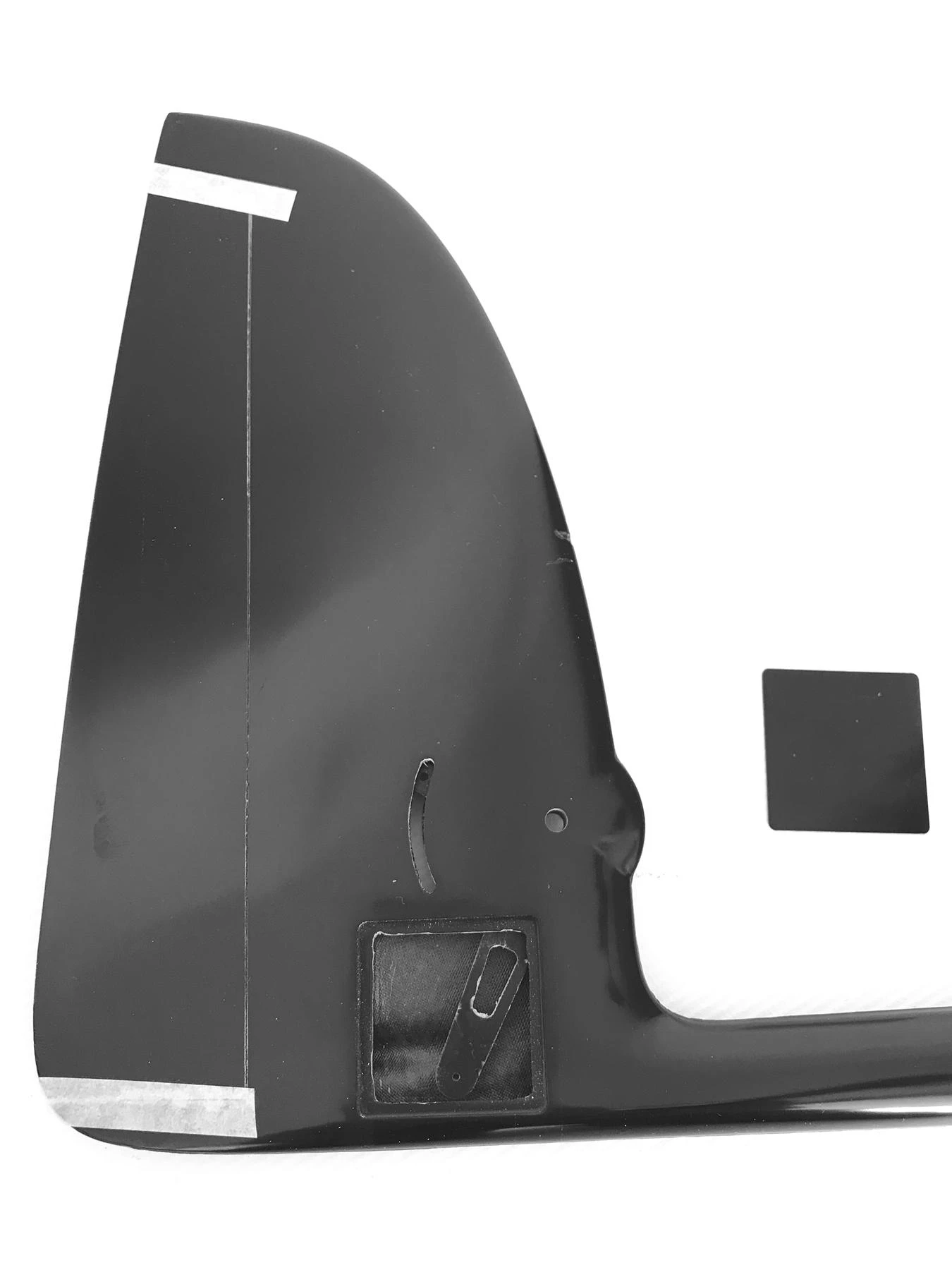

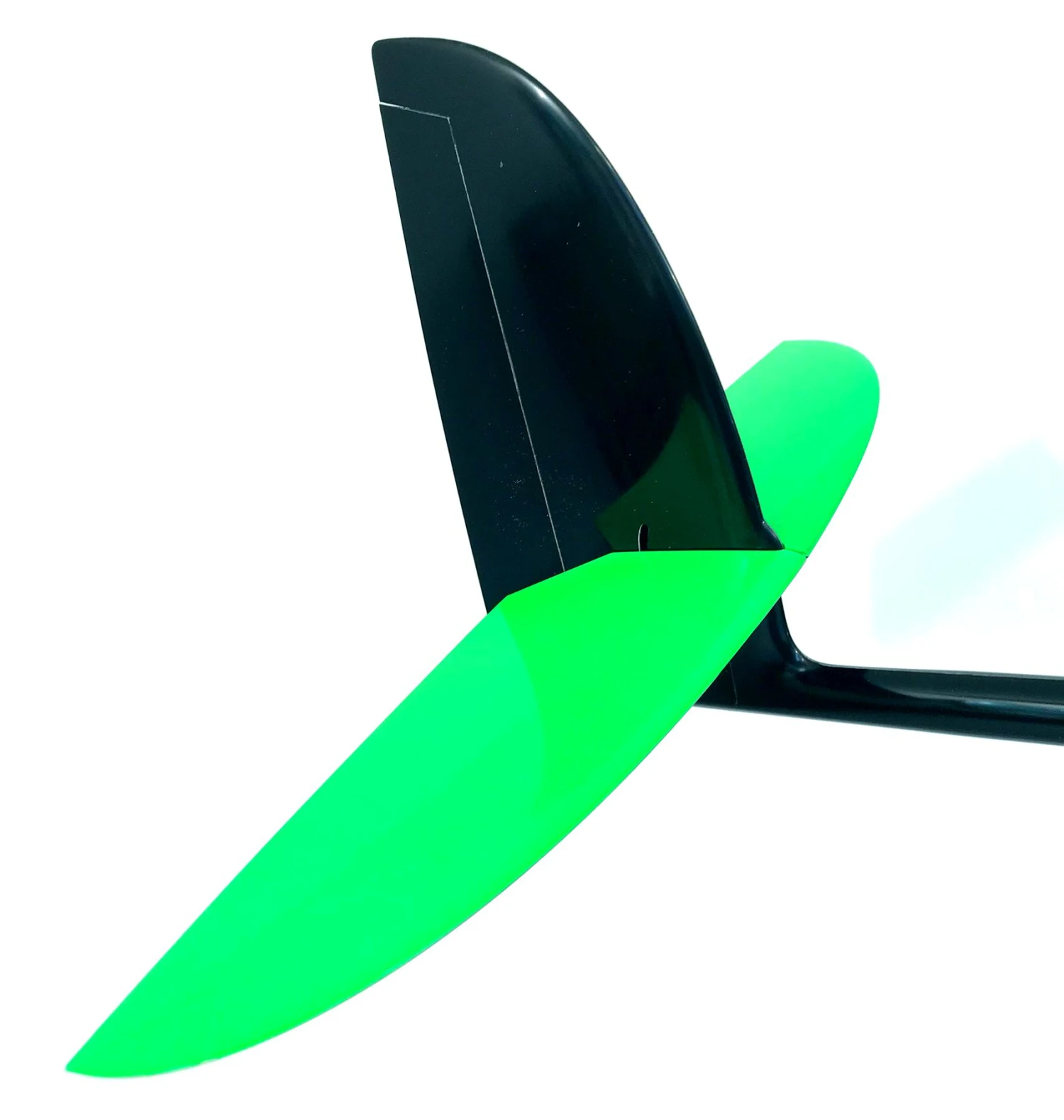

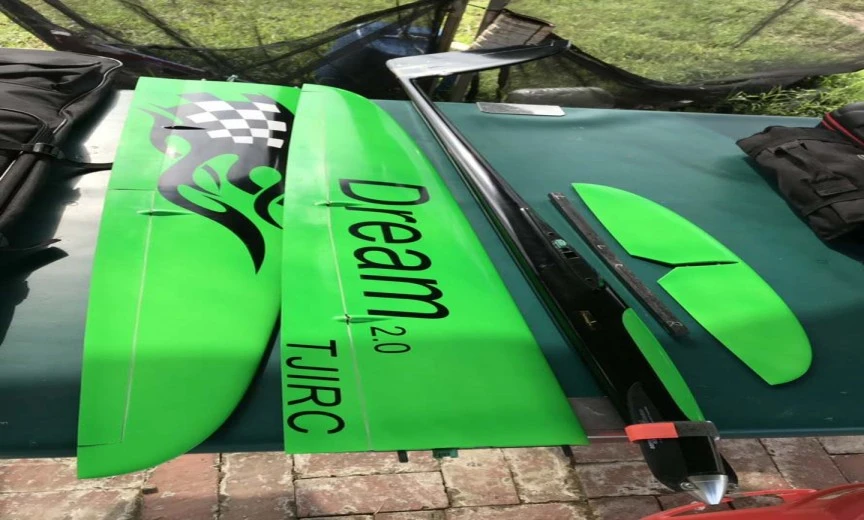

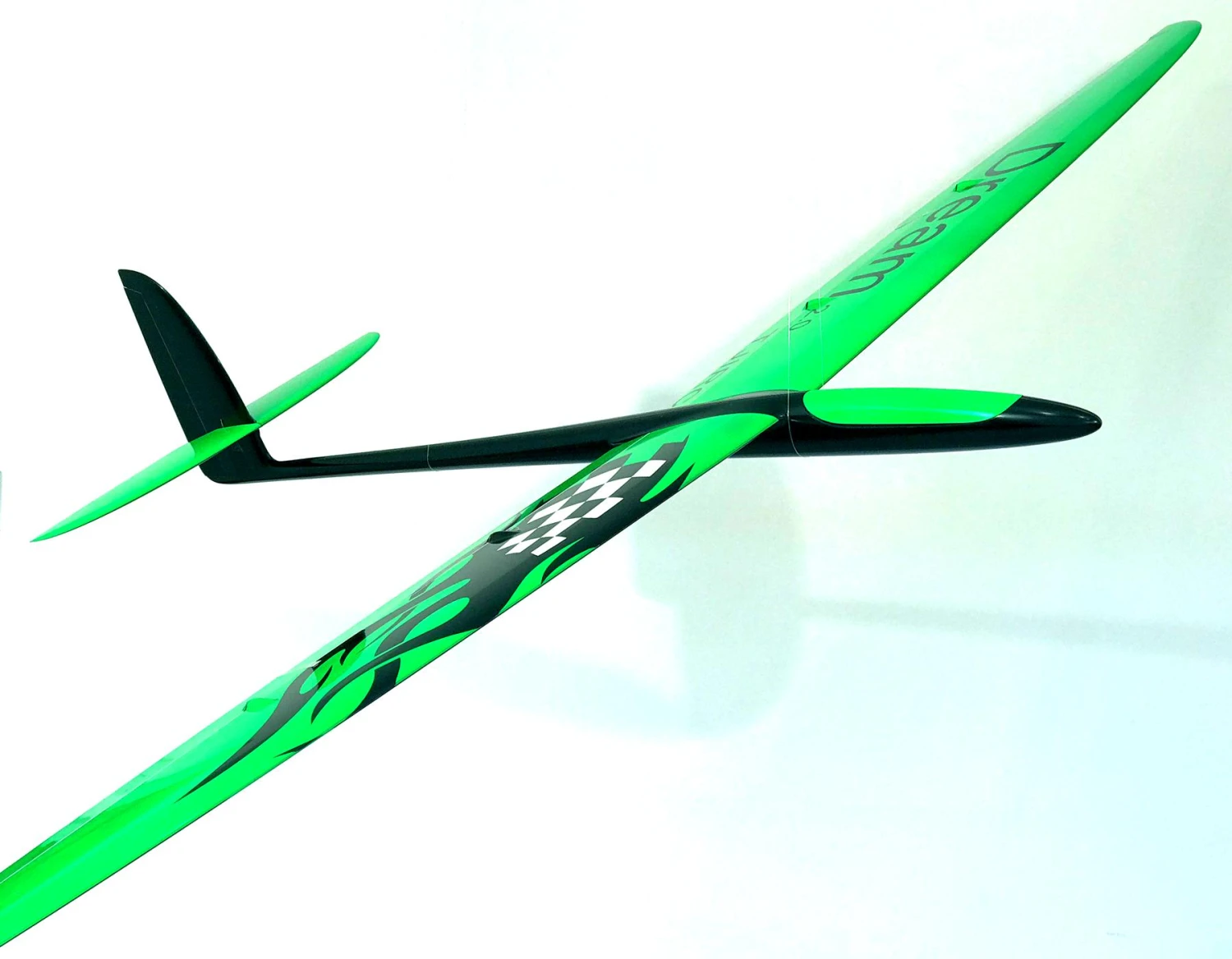

The Dream 2 glider fuselage is sleek and has a good sized canopy hatch. The fuselage has the rudder and elevator pushrods ready-installed, with 1.8mm carbon pushrods. The rear of the elevator pushrod is already connect to the nicely engineered bell crank that actuates the all-flying tail. The fin incorporates an access hatch for maintenance, should this ever be required.

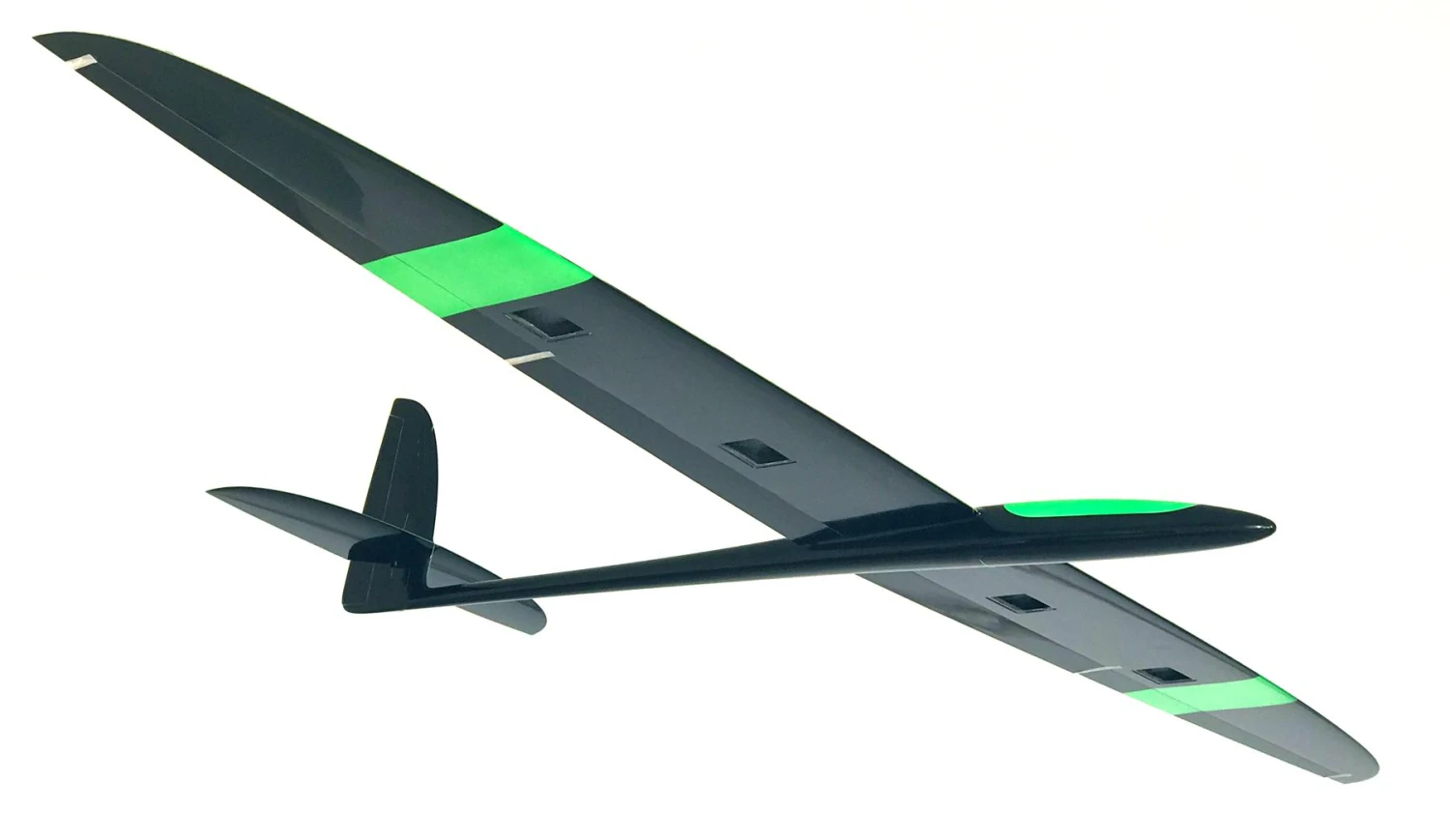

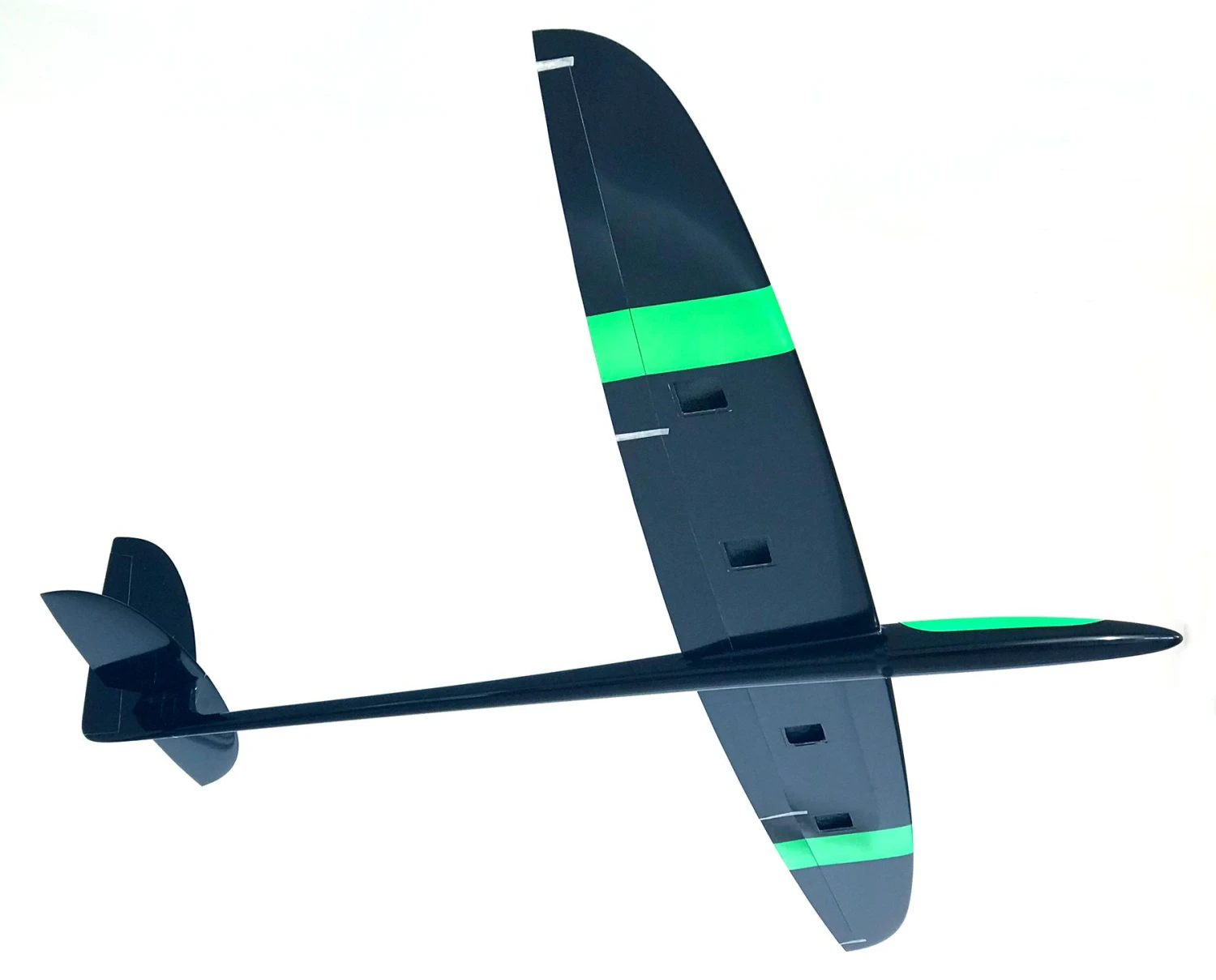

The two part wing is has a high quality finish and is of hollow molded construction. The through-fuselage wing joiner is very substantial and imparts just one degree of dihedral per panel, ensuring good aerobatic performance and an attractive look in the air. The wing has generous sized access hatches for the flap and aileron servos which can be up to 10 mm thick. The wing is available in glass and carbon layups. The carbon version is a very strong very heavy layup which should hold up well to the rough and tumble of slope flying.
The supplied accessories include all control horns, four plywood wing servo frames (for KST X10 or similar sized servos), and clevises and control rods for the flap and aileron connections. Also included ins a plywood fuselage servo mounting tray for 25mm x 12mm body sized servos (eg KST MS320, KST X12-508, KST DS215MG). No build manual is available but assembly is straight-forward. Note that although the surface finish is generally good the fit and finish of the model is not up to that of a top price European model. Small bumps and fit problems are normal at this price-point.
| Dream 2 Slope Soarer Specifications | ||
|---|---|---|
| Wing span | 2.0 m | 79 in |
| Wing area | 32.2 dm2 | 499 sq in |
| Length | 119 cm | 46.8 in |
| Flying weight from | 1443 g | 50.9 oz |
| Wing loading | 44.8 g/dm | 14.7 oz/sq ft |
| Aspect ratio | 12.4 | |
| Wing airfoil | Proprietary | |
| EDA (dihedral) | 1.0º | |
| Centre of Gravity | 65-80 mm from wing leading edge | |
| Controls | Rudder, elevator, ailerons, flaps | |
| Dream 2 Slope Soarer Typical Weights | ||
|---|---|---|
| Fuselage | 280 g | 9.9 oz |
| Wings | 674 g | 23.8 oz |
| Tail Plane | 53 g | 1.9 oz |
| Wing joiner | 77 g | 2.7 oz |
| Accessories | 35 g | 1.2 oz |
| Total structure | 1119 g | 39.5 oz |
| Wiring | 24 g | 0.8 oz |
| Pushrods | 12 g | 0.4 oz |
| Receiver | 8 g | 0.3 oz |
| Rudder servo | 20 g | 0.7 oz |
| Elevator servo | 20 g | 0.7 oz |
| Wing servos (4) | 50 g | 1.8 oz |
| Battery | 140 g | 4.9 oz |
| Nose weight | 50 g | 1.8 oz |
| Flying weight | 1443 g | 50.9 oz |
| Recommended Servos | |
|---|---|
| Rudder & Elevator | KST MS320, KST X12-508, KST DS215MG, KST X10-710*, KST DS145*, MKS HV6130H* |
| Flap | KST X10, KST DS125, MKS HV6130 |
| Aileron | KST X10 Mini, KST X10, KST DS135, KST DS125, MKS HV6130 |
* A bit too big for the fuselage servo tray included.
| Recommended Control Throws | |
|---|---|
| Rudder | 20 mm each way |
| Elevator | 12 mm up / 12 mm down |
| Ailerons | 14 mm up / 10 mm down |
| Flap | 45 mm down |
| Crow brake mix | 10 mm up aileron with full down flap |
