The models we have in stock now are all two-piece wing which make them very easy to store and transport, and all four servos mounted in the fuselage – no wing mounted servos as shown in some of the now outdated photos.

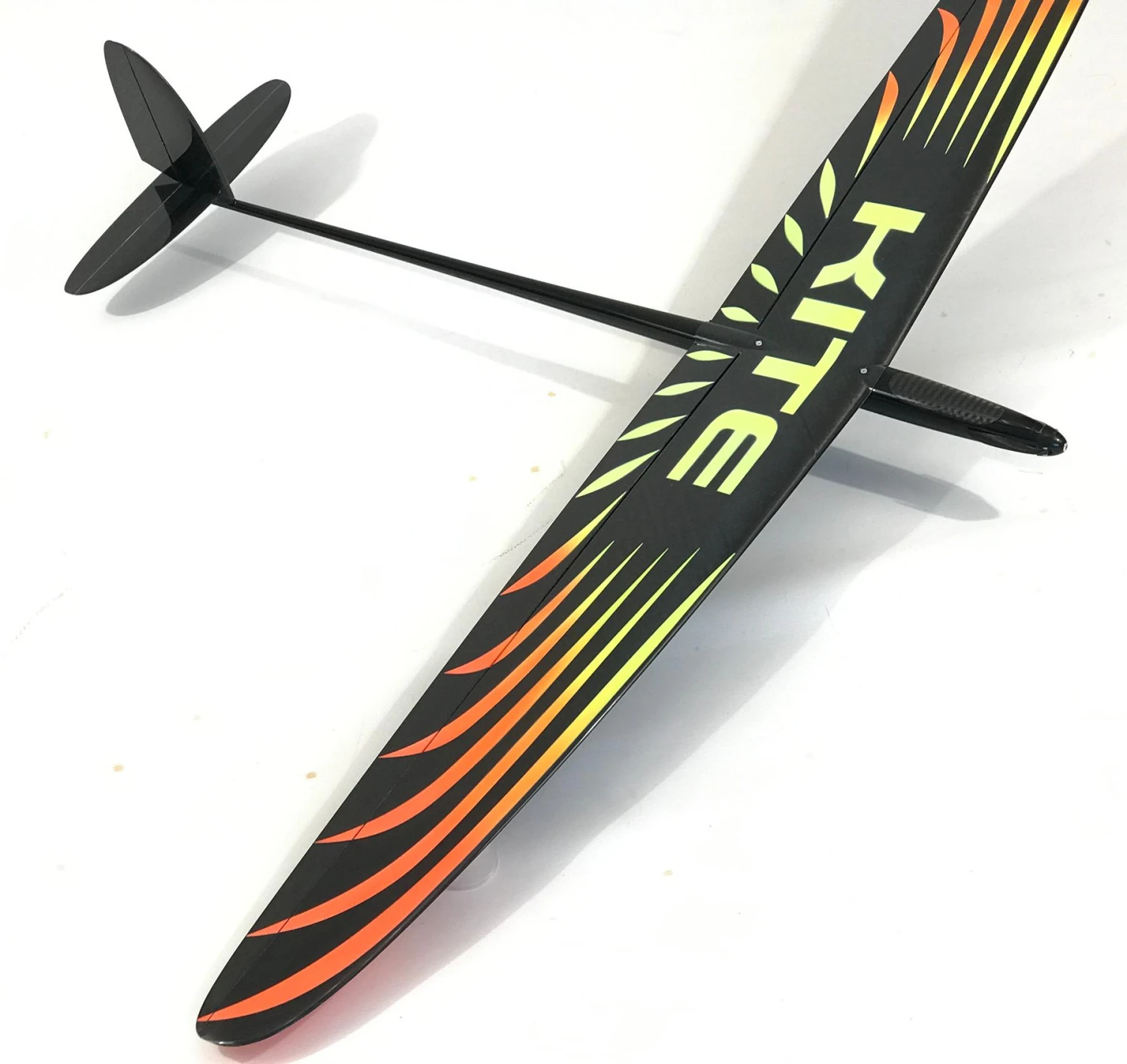

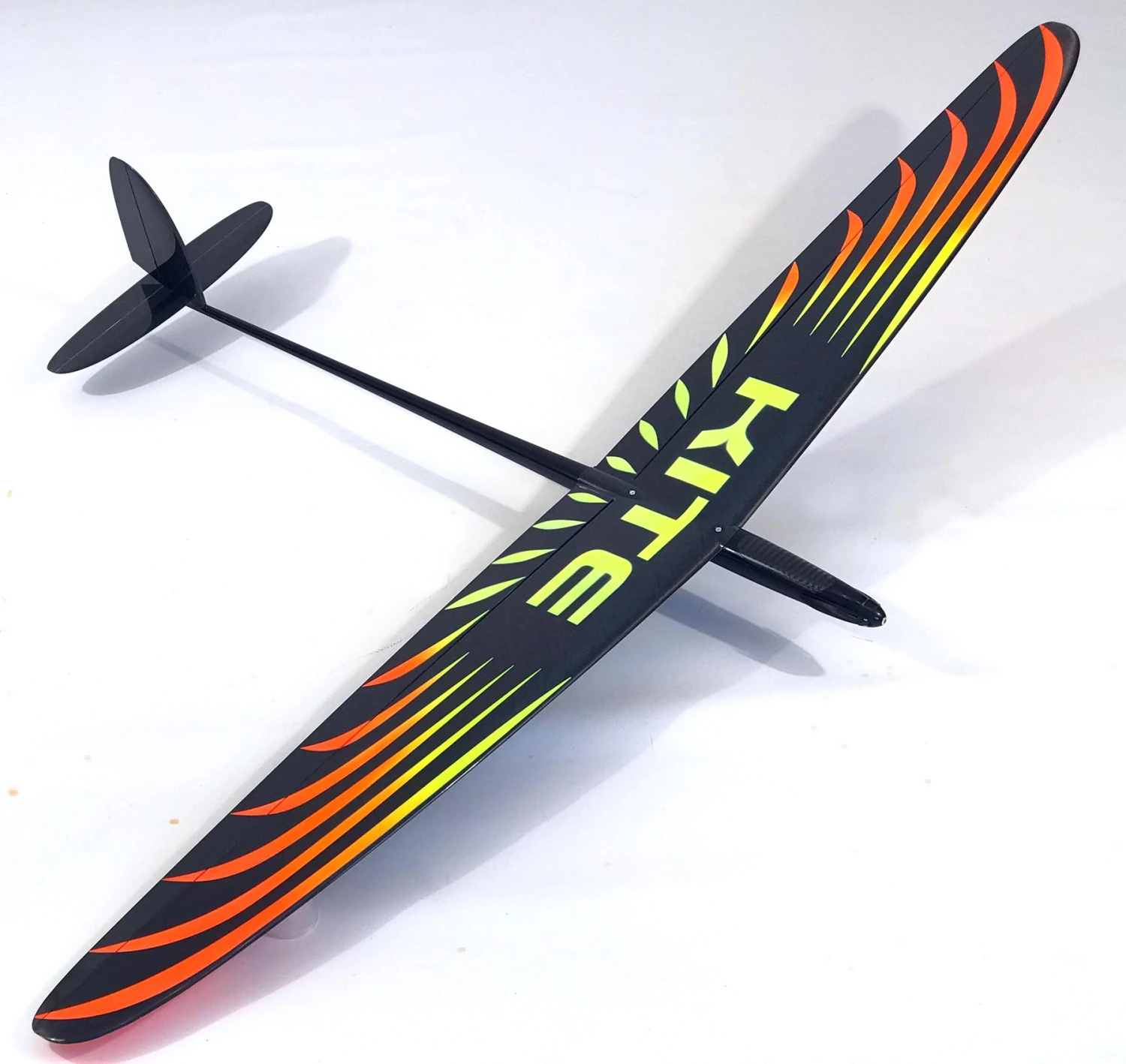

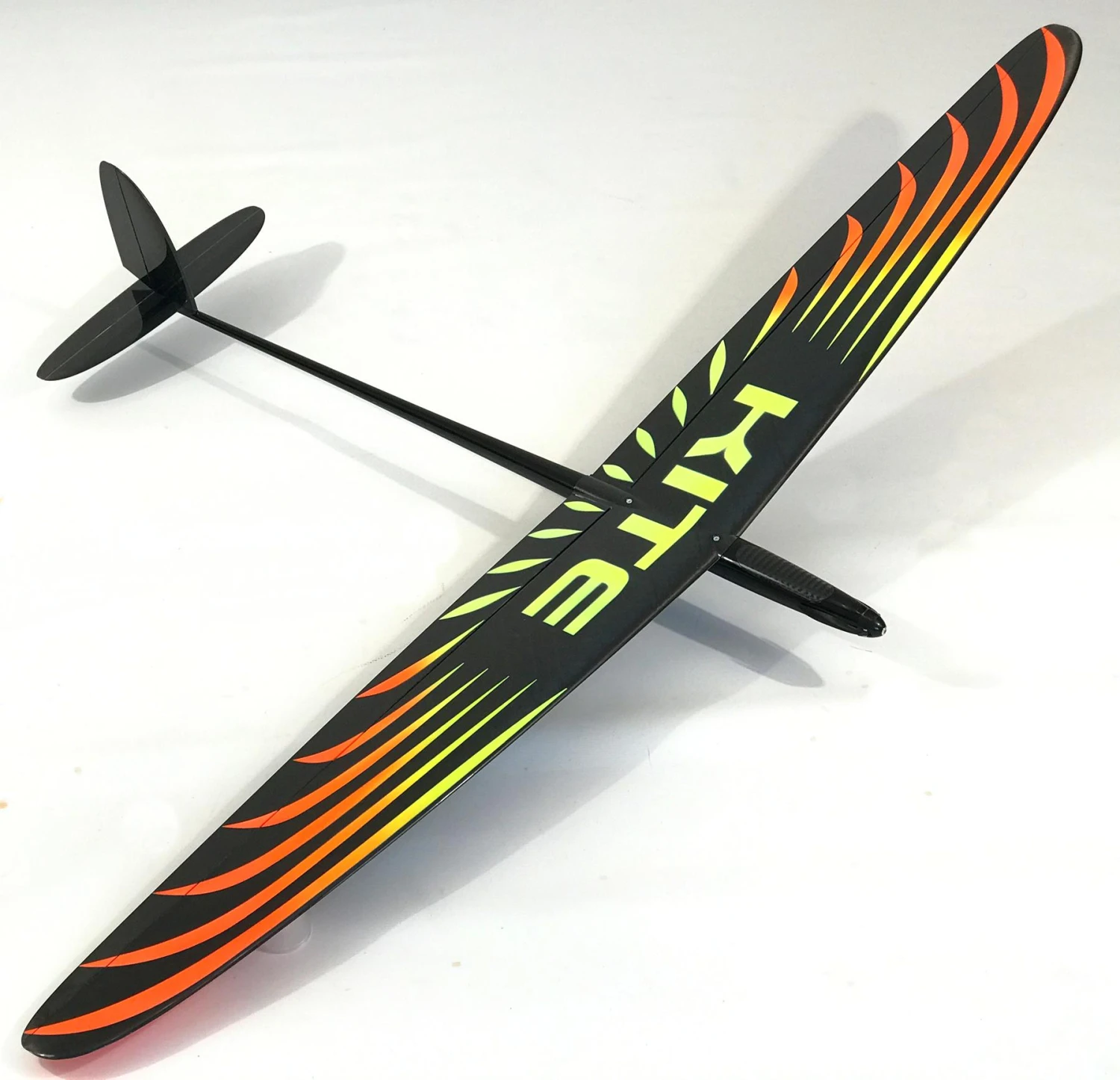

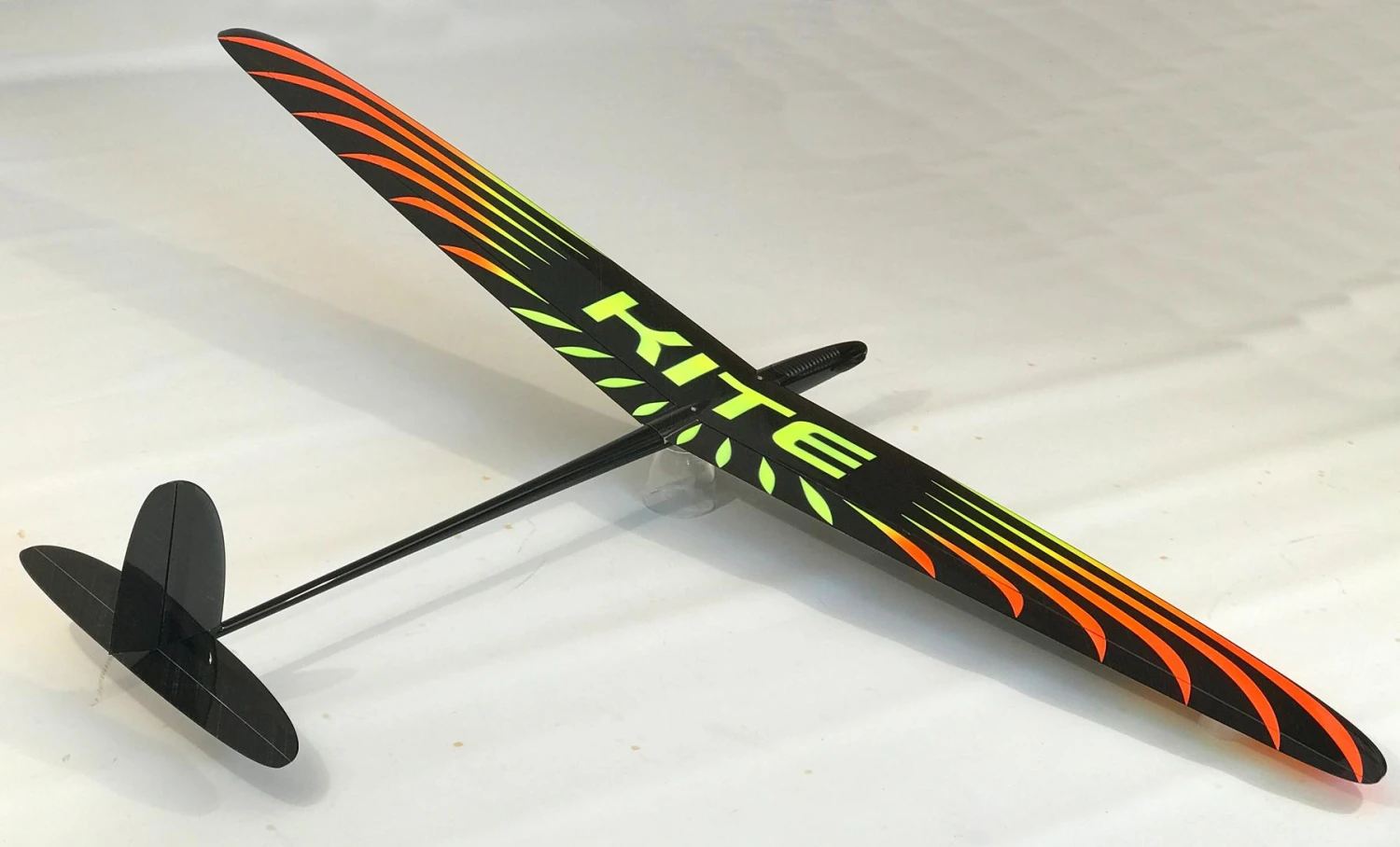

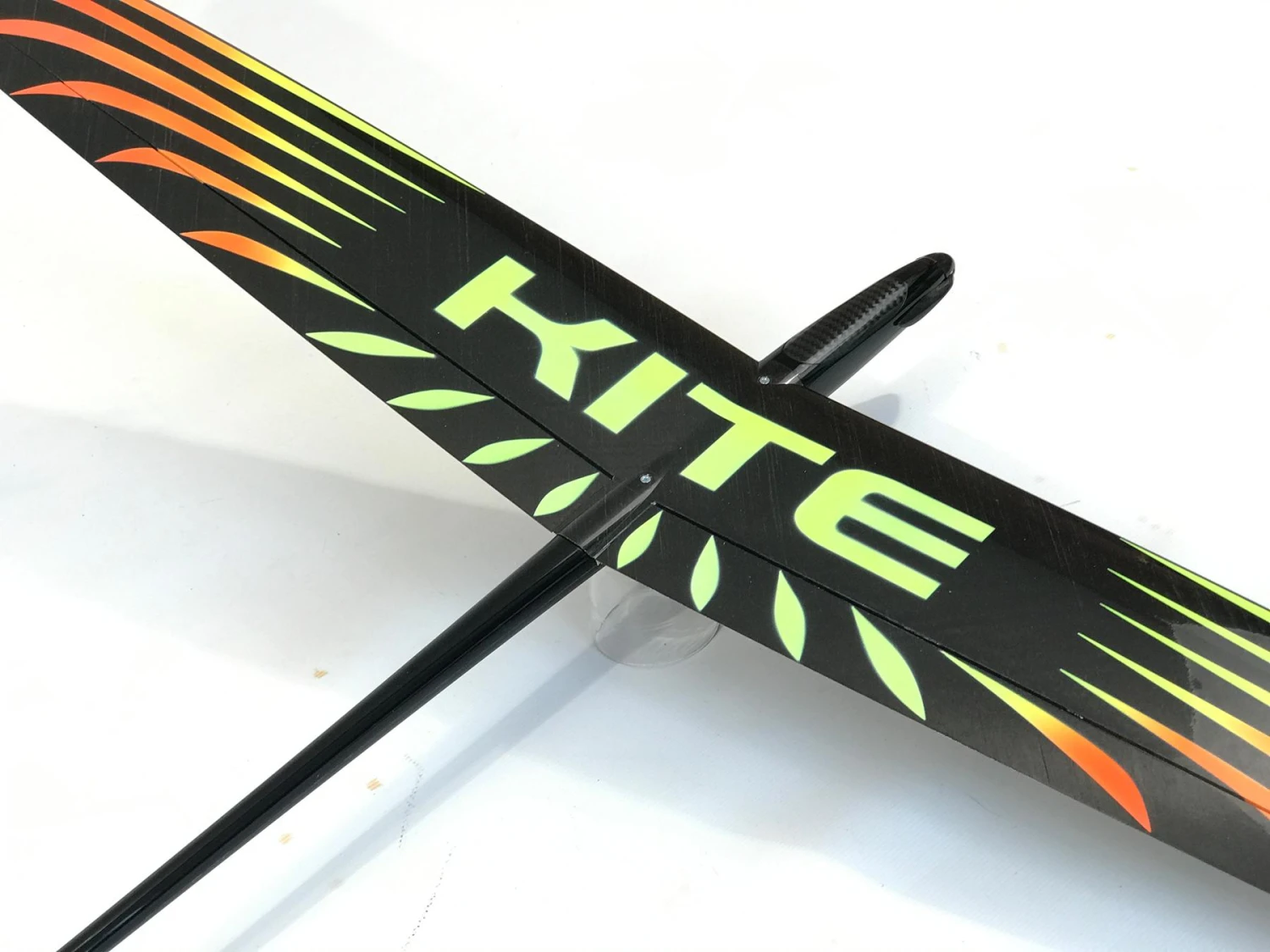

The spread carbon over Rohacell wing is very nicely made, with a high gloss finish and attractive colour schemes. A very good detail is that the aileron servos are mounted in the wing, giving extra space in the fuselage and simplifying the aileron linkage. Low drag servo covers perfectly cover the servo openings.
The E-Kite is supplied with a complete accessory pack including control horns, pull-cable, torque springs, pushrods and wing mounting screws. A good build manual can be downloaded from here.
| E-Kite F5K Specifications | ||
|---|---|---|
| Wing span | 1.5 m | 59 in |
| Wing area | 20.0 dm2 | 310 sq in |
| Length | 950 cm | 374.0 in |
| Flying weight from | 258 g | 9.1 oz |
| Wing loading | 12.9 g/dm | 4.2 oz/sq ft |
| Aspect ratio | 11.1 | |
| Wing airfoil | Zone V2 | |
| Dihedral | 6.0º | |
| Spinner Diameter | 25 mm | |
| Centre of Gravity | 70-76 mm from wing leading edge | |
| Controls | Rudder, elevator, ailerons, throttle | |
| Recommended R/C | |
|---|---|
| Elevator & rudder servos | KST X06, KST X08, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, MKS DS65K, MKS DS75K |
| Aileron servos | KST X06, KST X08, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, MKS HV70, MKS DS65K, MKS DS75K |
| Receiver | 5 channel rx to suit your transmitter, eg Spectrum AR6610T, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6 Light & RX-5 Light |
| Battery (2S 300 – 450 mAh LiPo) | Nanotech 2S 300 mAh, Radient 2S 430 mAh |
| Electric Powertrain Recommendations | |
|---|---|
| HyperFlight 1806 | 2S 450mAh LiPo, 6×3, 6×4 folding prop |
| ArmSoar 1507 | 2S 450mAh LiPo, supplied 6×3 folding prop |
| ArmSoar 1806 | 2S 450mAh LiPo, supplied 6×4 folding prop |
| XPower F2307/14 | 2S 450mAh LiPo, 6×4 folding prop |
| Electronc Speed Controls (ESC) Recommendations | |
|---|---|
| Hyperflight 11A BLHELI-32 | 11A, no BEC, use HV/WV servos |
| HyperFlight 28A BLHELI-32 | 30A, 2A BEC, JST plug ready fitted |
| E-Power Plus 25A | 25A, 4A BEC, a bit big |
| HyperFlight 30A BLHELI-32 | 30A, 2A BEC, XT30 plug ready fitted |

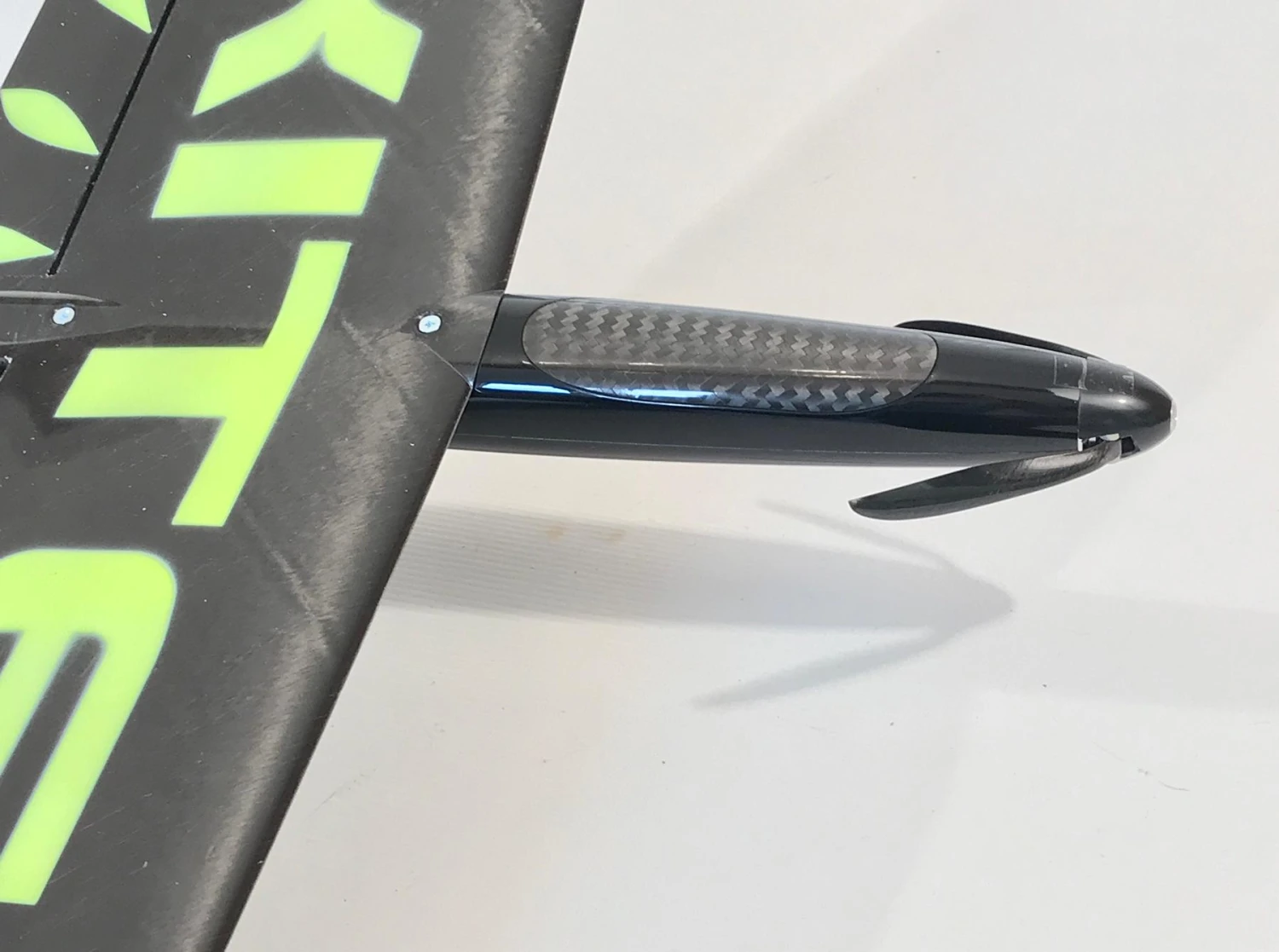

The powertrain used in the photos gave closely folding prop blades to minimise drag. The items used were as below.
| HyperFlight 1806 | |
|---|---|
| CN Models 25mm Spinner for M5 Shafts | |
| CN 6×4 folding prop blades | |
| HyperFlight 28A BLHELI-32 |
| E-Kite F5K Typical Weights | ||
|---|---|---|
| Fuselage | 34 g | 1.2 oz |
| Wings | 104 g | 3.7 oz |
| Fin | 8 g | 0.3 oz |
| Tailplane | 6 g | 0.2 oz |
| Accessories | 8 g | 0.3 oz |
| Total structure | 160 g | 5.6 oz |
| Wiring & glue | 5 g | 0.2 oz |
| Receiver | 5 g | 0.2 oz |
| Rudder & elevator servos | 13 g | 0.5 oz |
| Aileron servos | 13 g | 0.5 oz |
| ESC | 5 g | 0.2 oz |
| Motor | 21 g | 0.7 oz |
| Prop & spinner | 6 g | 0.2 oz |
| Battery | 30 g | 1.1 oz |
| Flying weight | 258 g | 9.1 oz |
