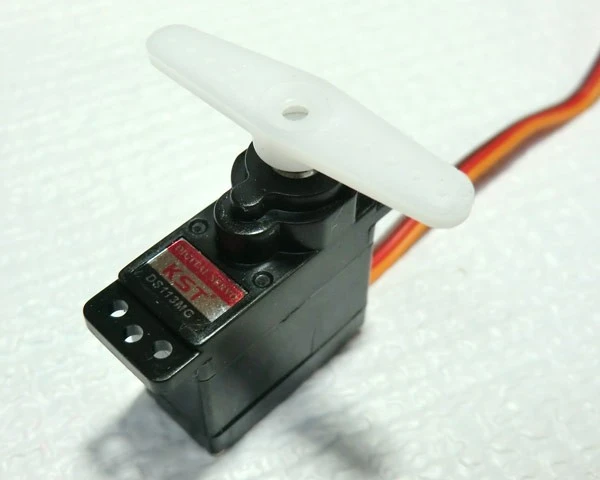

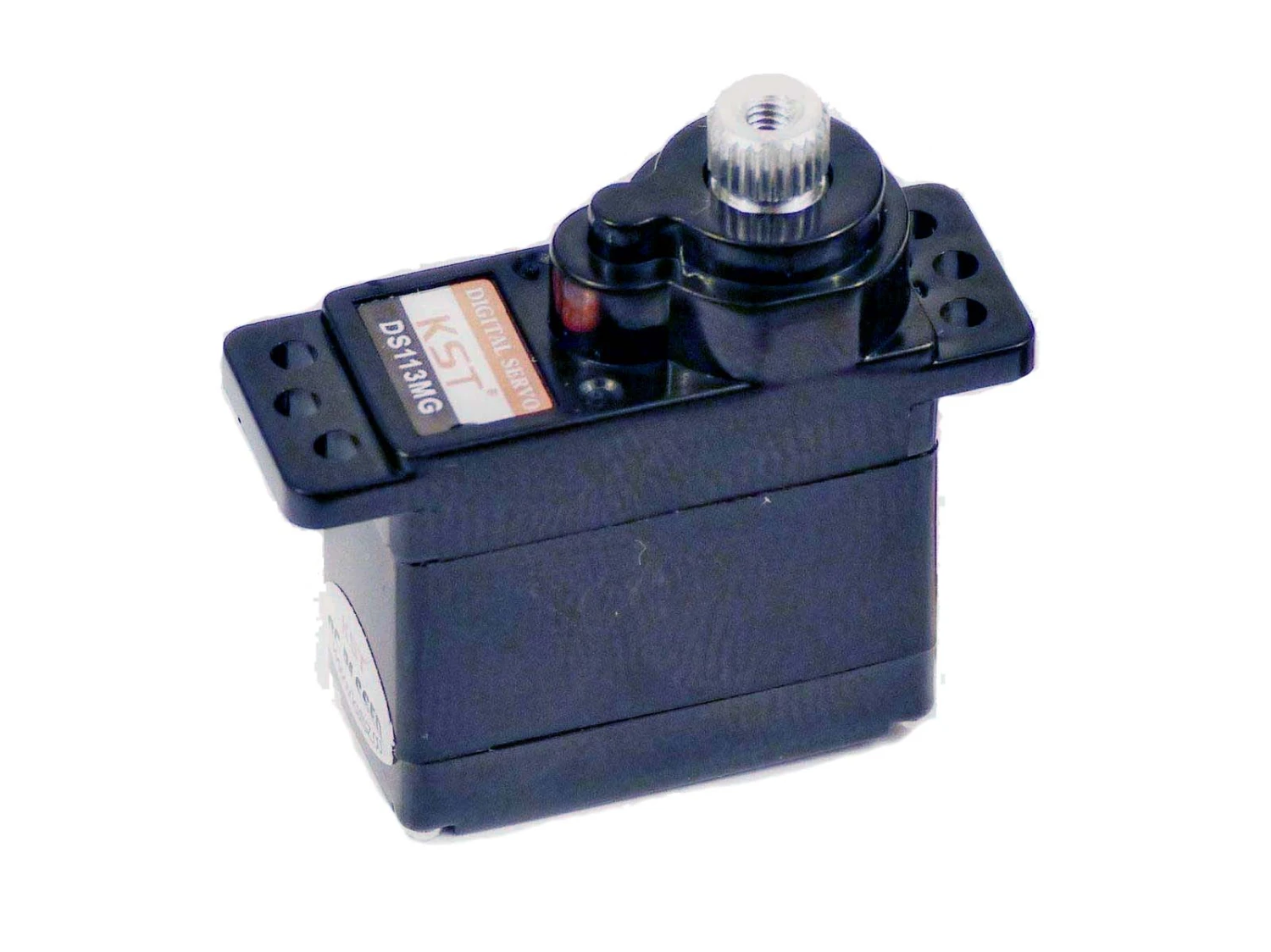

KST DS113MG Servo – 2.2Kg.cm 0.11s 12.0g 12mm

The KST DS113MG is a traditional plastic cased servo, but with all the great performance we have grown to expect from KST. With high quality metal gears, 2.2 Kg.cm of torque and a speed of 0.11 sec/60° this is a very capable servo at an exellent price.

KST DS113MG Servo Specifications
Body dimensions	24.0 mm wide x 12.0 mm thick x 22.0 mm high	0.94″ wide x 0.47″ thick x 0.87″ high
Max dimensions	32.5 mm wide x 12.0 mm thick x 33.5 mm high	1.28″ wide x 0.47″ thick x 1.32″ high
Stall torque (4.8V)	1.8 Kg.cm	25 oz.in
Stall torque (6V)	2.2 Kg.cm	31 oz.in
Stall torque (6V)	2.2 Kg.cm	31 oz.in
Weight	12 g	0.42 oz
Lead length	10 cm	3.9 in
Operating speed (4.8V)	0.14 sec/60°
Operating speed (6V)	0.11 sec/60°
Operating speed (6V)	0.11 sec/60°
Operating voltage	4.8V to 6V
Operating temperature	-10 to 55 °C
Bearings	1 Ball bearing
Gear material	Aluminium alloy / copper-bronze alloy
Case material	Strong plastic
Motor type	Cored DC motor
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	800-2200 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	3 plastic output arms, 1 arm retaining screw, 2 mounting screws
Optional accessories	KST Plastic Servo Arm Set
