Sale!
Mega 16/15/5 1800 RPM/V 77g Inrunner
Original price was: £79.49.£55.64Current price is: £55.64.
- Easy, Fast Returns Guarantee
- Your needs, our top priority.
- Protect Your Wallet with Safe Payments
- Quality products for every lifestyle.

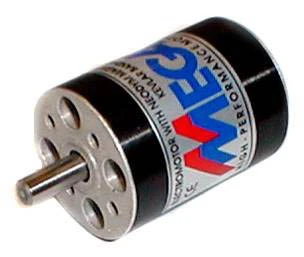

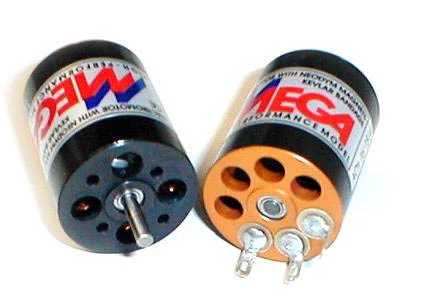

The Mega 16/15/5 Brushless Motor is a Speed 400 sized brushless motor that is powerful, efficient and reliable. Recommended for sports models and electric gliders.
- Hardened steel shaft, diameter 3.2 mm.
- Two precise ball bearings
- Dynamically balanced
- Neodymium magnet rotor
- Handmade stator, lightweight rotor allows high revolution.
- Kevlar bandage rotor
- Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
- Efficiency up to 86%
| Mega 16/15/5 Specifications | ||
|---|---|---|
| Motor name | Mega 16/15/5 | inrunner |
| Motor weight | 77.0 g | 2.72 oz |
| Motor diameter | 28.0 mm | 1.10 in |
| Motor length | 36.0 mm | 1.42 in |
| Lead length | 0.0 cm | 0.00 in |
| Shaft diameter | 3.2 mm | 0.12 in |
| Mounting info | 2 M3 holes on 16mm & 2 on 19mm diameter | |
| Estimated Rm | 68 mR | |
| Estimated Kv | 1800 RPM/V | |
| Estimated Geared Kv | 1800 RPM/V | |
| Estimated Io | 0.80 A @ 10 V | |
| Max efficiency (10 V) | 86 % @ 10.8 A | |
| Operating effic’y (10 V) | 80 % @ 25.0 A | |
| Motor Km | 20.3 Nm/W^.5 X1000 | |
| Motor Km/Kg | 264 Nm/(W^.5 Kg) | |
| Recommended battery | 3S LiPo | |
| Rec max LiPo capacity | 1.5 Ah | |
| Supplied accessories | None | |
| 3S LiPo Performance | ||
| Recommended prop | 8×4 | |
| Input power | 290 W on 8×4 prop | |
| Current | 29.0 A on 8×4 prop | |
| Rate of climb | 7.5 m/s for 800 g glider | |
Be the first to review “Mega 16/15/5 1800 RPM/V 77g Inrunner”
