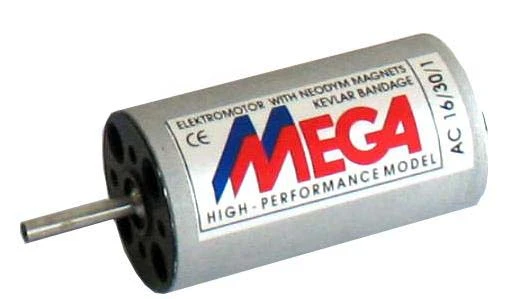

Mega 16/30/2 2100 RPM/V 135g Inrunner

The Mega 16/30/2 Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for electric gliders and sports planes on 3S, or pylon racers on 4S up to 6S.

• Hardened steel shaft, diameter 3.2 mm.
• Two precise ball bearings
• Dynamically balanced
• Neodymium magnet rotor
• Handmade stator, lightweight rotor allows high revolution.
• Kevlar bandage rotor
• Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
• Efficiency up to 91%

Mega 16/30/2 Specifications
Motor name	Mega 16/30/2	inrunner
Motor weight	135.0 g	4.76
Motor diameter	28.0 mm	1.10
Motor length	51.0 mm	2.01
Lead length	0.0 cm	0.00
Shaft diameter	5.0 mm	0.20
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	16 mR
Estimated Kv	2100 RPM/V
Estimated Geared Kv	2100 RPM/V
Estimated Io	3.50 A @ 10 V
Max efficiency (10 V)	86 % @ 46.8
Operating effic’y (10 V)	84 % @ 70.0
Motor Km	35.9 Nm/W^.5 X1000
Motor Km/Kg	266 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	3 Ah
Supplied accessories	None
3S LiPo Performance
Recommended prop	8×5 for climb or 8×8 for speed
Input power	670 W on 8×5 prop
Current	67.0 A on 8×5 prop
Rate of climb	12 m/s for 900 g glider
4S LiPo Performance
Recommended prop	7×6
Input power	980 W on 7×6 prop
Current	81.0 A on 7×6 prop
5S LiPo Performance
Recommended prop	6×7
Input power	1250 W on 6×7 prop
Current	82.0 A on 6×7 prop
6S LiPo Performance
Recommended prop	5.5×5.5
Input power	1350 W on 5.5×5.5 prop
Current	73.0 A on 5.5×5.5 prop
