MKS HS75H Hall Effect Servo – 4.0Kg.cm 0.09s 7.9g 7mm

The MKS HS75H servo is a 7.5mm thin high voltage servo with a hall effect (magnetic) position sensor, for maximum resolution and reliability. This version has normal mounting tabs making it suitable for fitting in a fuselage.

The MKS HS75H is ideal for F3K, F5K, F5D, and all small models that require excellent precision, massive torque, and adequate speed. It is probably the best 7.5 mm thick servo currently produced. It looks beautiful and with a torque of 4 Kg cm it is amazingly powerful with an excellent 0.09s/60 deg speed.

The supplied accessories include a pulley type output disk, making this servo ideal for pull-spring tail surface connections, as popularised on DLGs but also finding favour in other classes of models. Although old school modellers are reticent about trying pull-spring it is actually very quick and easy to set up, and results in a lightweight and totally slop free control surface linkage. Easily implemented using our torque springs and pull cord sets.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

This servo is also available with wing mounting lugs, see the MKS HS75.

MKS HS75H Hall Effect Servo Specifications

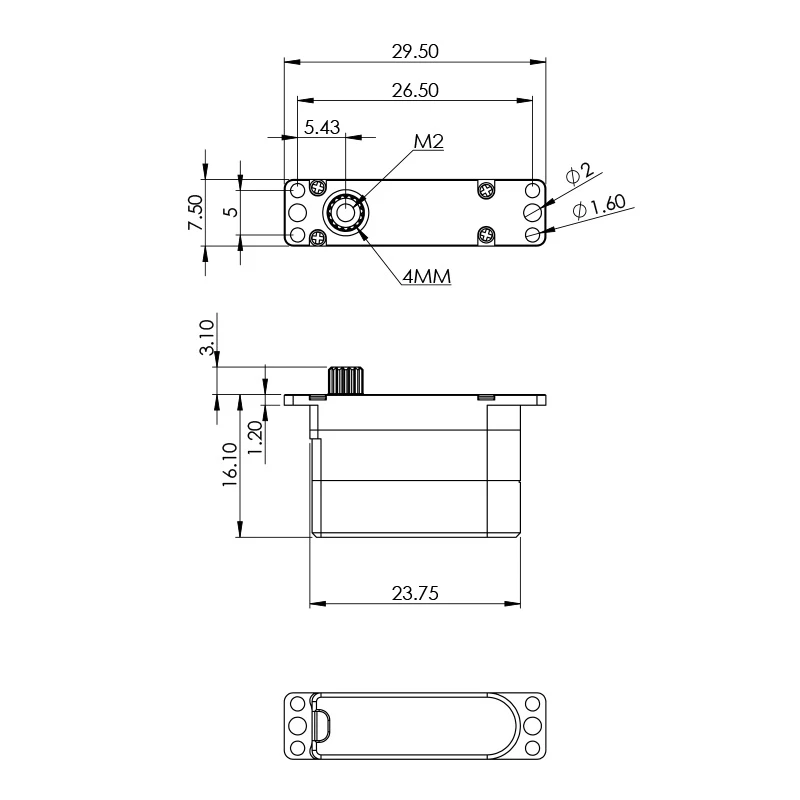

Body dimensions	23.8 mm wide x 7.5 mm thick x 16.1 mm high	0.94″ wide x 0.29″ thick x 0.63″ high
Max dimensions	29.7 mm wide x 7.5 mm thick x 20.0 mm high	1.17″ wide x 0.29″ thick x 0.79″ high
Stall torque (6V)	3.4 Kg.cm	47 oz.in
Stall torque (7.4V)	3.8 Kg.cm	53 oz.in
Stall torque (8.2V)	4 Kg.cm	56 oz.in
Weight	7.9 g	0.28 oz
Lead length	14 cm	5.5 in
Operating speed (6V)	0.114 sec/60°
Operating speed (7.4V)	0.094 sec/60°
Operating speed (8.2V)	0.087 sec/60°
Operating voltage	6V to 8.4V
Operating temperature	0 to 50 °C
Bearings	2 copper bushings
Gear material	7075 Chrome-Titanium alloy
Case material	6061 Aluminum alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs – (0°) 1520 µs- (R) 2120 µs µs
Digital	Yes
Programmable	No
Position feedback	Hall effect (magnetic)
Supplied accessories	2 large plastic output arms, 1 small plastic arm, 1 pulley, 1 arm retaining screw, 4 mounting screws
