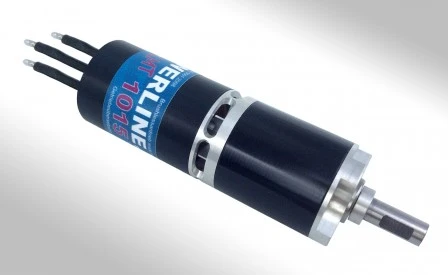

Powerline Micro 1015/12 79g

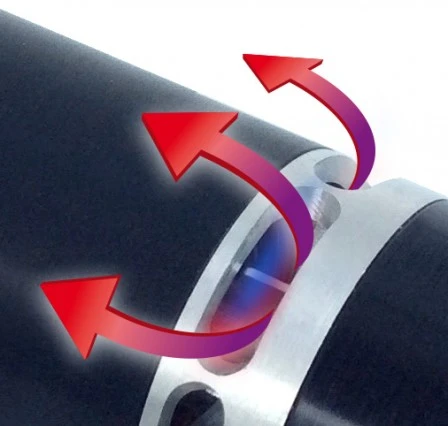

The new Powerline Micro 1015 Turbo is optimised for 2S LiPo power of F5J models weighing up to 1700g. Max current 50A on a 2S LiPo with a max capacity 1400 mAh. This new version has forced cooling allowing even higher power for a given weight of powertrain.

This motor is perfect for modellers wanting to use HV servos directly powered from the 2S LiPo flight battery.

Powerline Micro 1015 Turbo Weights
Suitable for gliders weighing	1300-1700 g max
Max power	330W
Max current	50A
Motor/gearbox weight	79 g
Length	64 mm
Diameter	22 mm
Mounting pitch circle diameter	17 mm
Shaft diameter	5 mm
Gearbox ratio	6.75:1
Recommended ESC	YGE 65 LVT
Recommended 2S propeller	GM 16×8, RF 16×8, RF 16×8.5
Recommended battery	2s Lipo up to 1400 mAh

Powerline Micro 1015 Turbo Weights
Powerline Micro 1015 Turbo	79 g
Propeller RF 16×8.5	12 g
Spinner RF 30 mm	13 g
LiPo 2S 1100 40C	80 g
ESC YGE 60	38 g
Plugs and screws	4 g
Total weight	226 g
