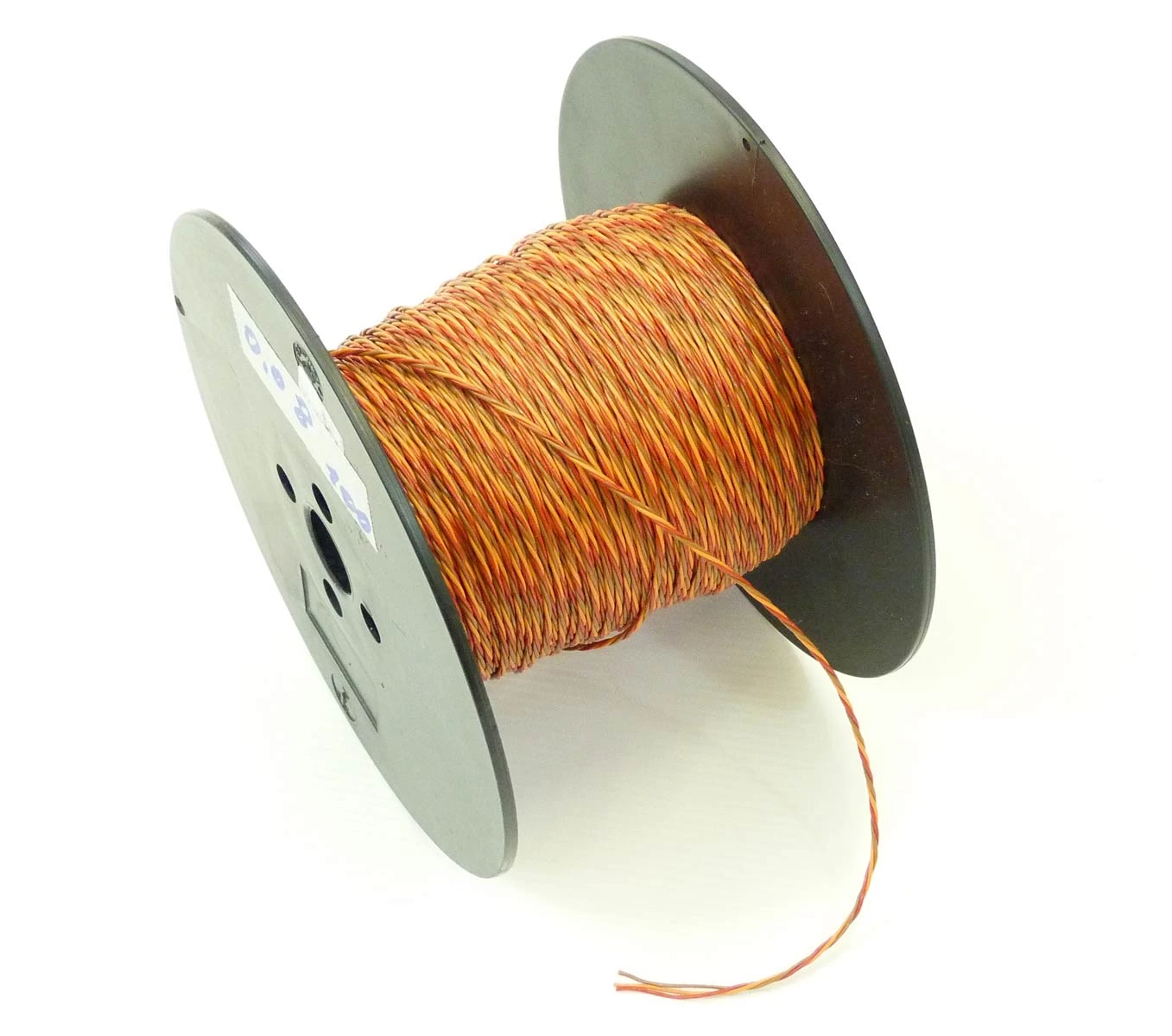

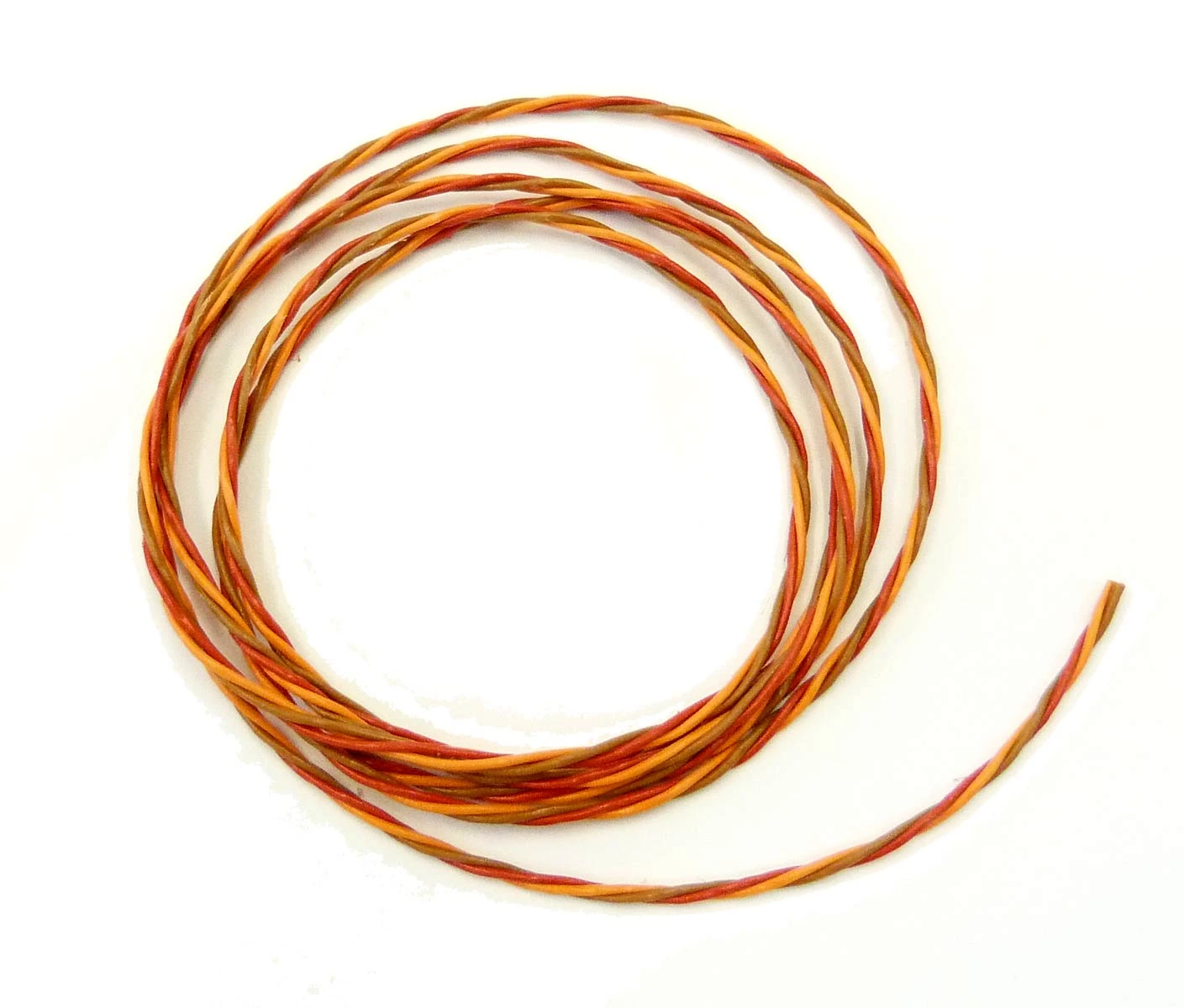

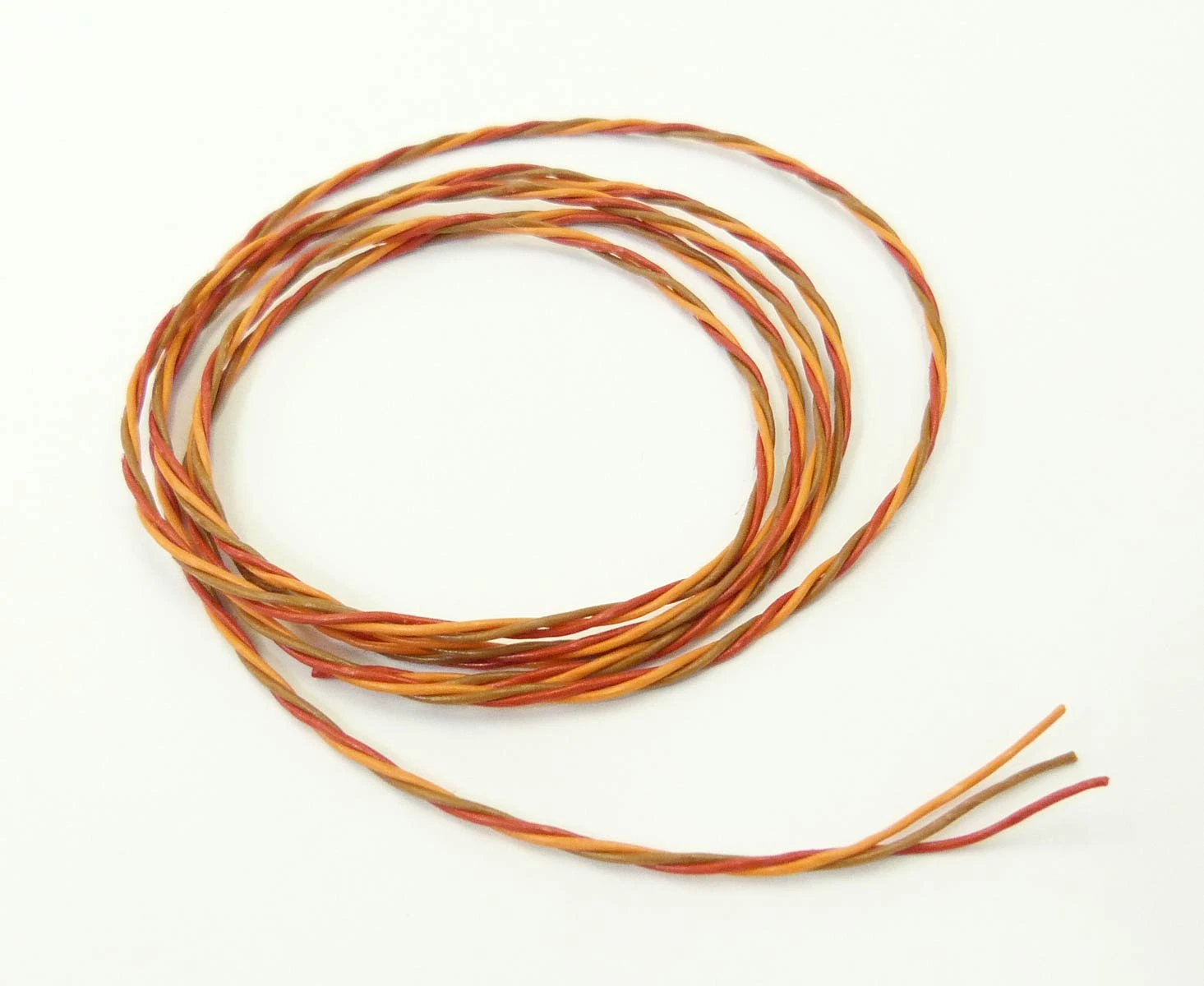

Ultra Light Servo Twisted Extension Cable 3.7 G/m

Ultra lightweight and thin flexible PVC servo wire made from three twisted 0.08 mm2 copper conductors each consisting of 19 – 0.07 mm copper wires. This increases flexibility, fatigue resistance, and possibly improves conductivity over fewer thicker conductors. This ultra-lightweight cable is far lighter than most wiring harness cables, but in our experience can safely be used for tail servos and aileron servos on 3m to 4m electric gliders.

Twisted extension leads suffer less from interference from other RF sources, reducing servo chatter and other RC problems. They also radiate less electromagnetic noise, reducing the likelihood of the extension leads causing interference.

Only weighs 3.7 g per meter for the servo cable (1.2 g per meter per wire). Sold by the meter. Enter a quantity of 5 for a 5 m length of servo wire.

Ultra Lightweight Twisted Servo Extension Cable Specifications
Number of conductors in cable	3
Area of each conductor	0.08 mm2
Conductor material	Copper
Number of wires in each conductor	19
Diameter of each wire	0.07 mm
Weight per meter	3.7 g
Resistance of each conductor	0.43 Ohms/meter
Sheath material	PVC
Colours of wires	Red, brown, orange
Format	Three wire twisted cable

Servo Cable Colour Code
Usage		JR	Futaba
Battery positive	+	Red	Red
Battery negative	–	Brown	Black
Servo signal	S	Orange	White
